DeepSeek MoE: What It Is and Why It Powers V4-Pro and V4.1-Flash

If you have read about DeepSeek V3, R1 or V4 and seen phrases like “671B total / 37B active” without quite understanding what they mean, you are in the right place. DeepSeek MoE is the mixture-of-experts architecture that lets DeepSeek build very large models that only spend a fraction of their parameters on any given token. It started as a January 2024 research paper, became the backbone of V2, V3, R1 and V3.2, and the V4-generation models behind DeepSeek’s API today are MoE models too.

This guide walks through what DeepSeek MoE actually is, the two ideas that make it work, the lineage from the original DeepSeekMoE 16B to today’s V4-Pro and V4.1-Flash, and how to use these models.

What is DeepSeek MoE?

DeepSeek MoE (DeepSeekMoE in the paper) is a mixture-of-experts architecture introduced in a paper by Damai Dai and colleagues at DeepSeek, posted to arXiv on 11 January 2024. The paper’s starting point is that mixture-of-experts is a promising way to manage computational costs when scaling up model parameters, but conventional MoE architectures like GShard, which activate the top-K out of N experts, struggle to ensure that each expert acquires non-overlapping and focused knowledge. DeepSeek’s answer combines two ideas, fine-grained expert segmentation and shared expert isolation, to push each expert toward a narrower, less redundant slice of knowledge.

The architecture matters because DeepSeek’s flagship language models since V2 have all been MoE models. DeepSeek’s API today serves two of them: deepseek-flash (DeepSeek-V4.1-Flash-1017) and deepseek-v4-pro (DeepSeek-V4-Pro-0813), both open-weight under MIT. Earlier MoE releases include V2, V3, R1, V3.1, V3.2 and the original DeepSeekMoE 16B research model.

How DeepSeek MoE works: two ideas

Fine-grained expert segmentation

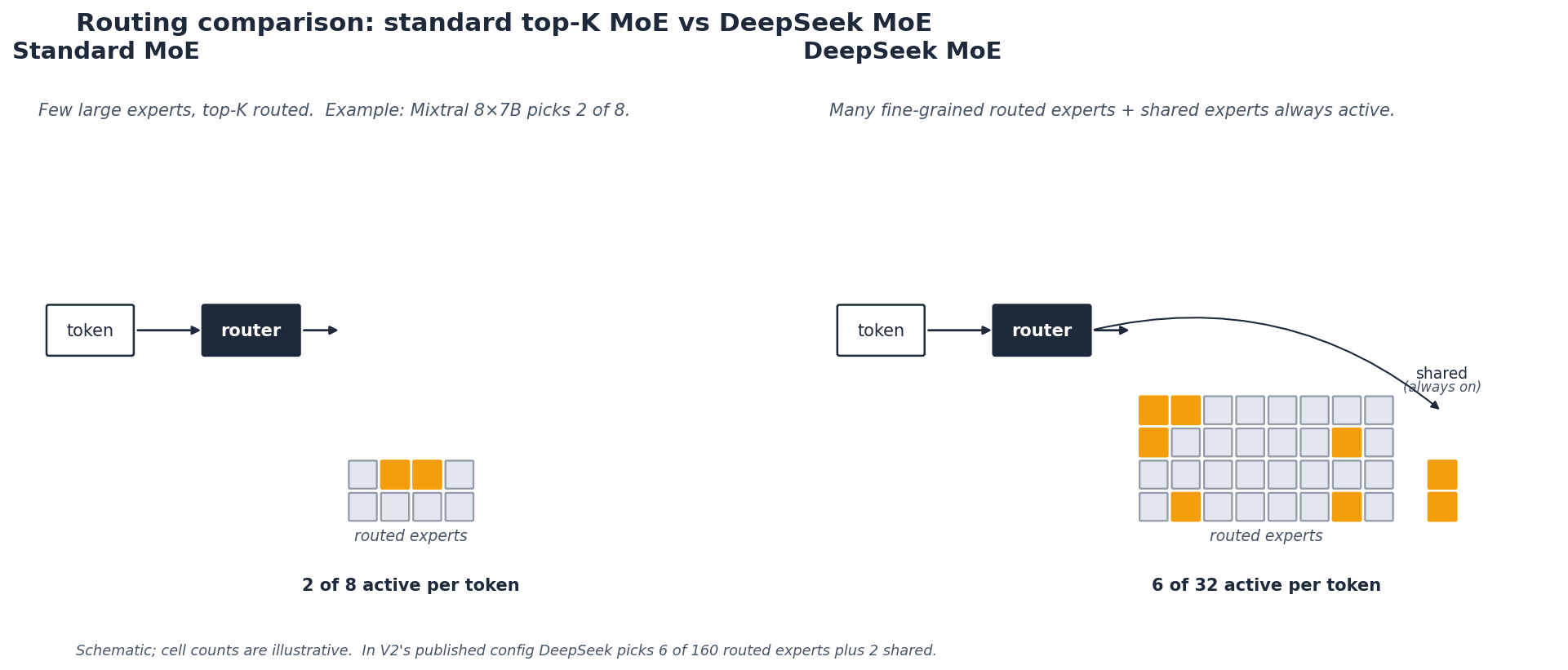

In a conventional MoE layer, the feed-forward network is split into a small number of large experts and a router picks the top few; GShard uses top-2 routing, and Mixtral 8x7B’s published config has 8 experts with 2 active per token. DeepSeek segments the experts into a finer grain by splitting the FFN intermediate hidden dimension while keeping the number of parameters constant. To keep the computational cost constant, it also activates more of these fine-grained experts, which allows a more flexible combination and lets diverse knowledge be decomposed more finely and learned more precisely by different experts.

The practical effect: instead of choosing 2 of 8 experts, V2’s MoE layer chooses 6 of 160. According to V2’s published config, each MoE layer has 2 shared experts and 160 routed experts with an intermediate hidden dimension of 1,536 each, and 6 routed experts are activated per token. More, smaller experts give the router a finer instrument, while the FLOPs and parameter count stay the same.

Shared expert isolation

The second trick is to carve out a small number of experts that are always active for every token. In the paper’s words, DeepSeek isolates K_s experts as shared ones, aiming at capturing common knowledge and mitigating redundancy in routed experts. The intuition: common knowledge such as basic syntax does not need to be re-learned by every routed expert. Park that knowledge in a shared expert, and the routed experts can specialise harder on what is left.

Both choices are designed to push each routed expert toward a narrower slice of the data distribution. DeepSeek’s own ablations show fine-grained expert segmentation and shared expert isolation both contribute to stronger overall performance.

Architecture and lineage

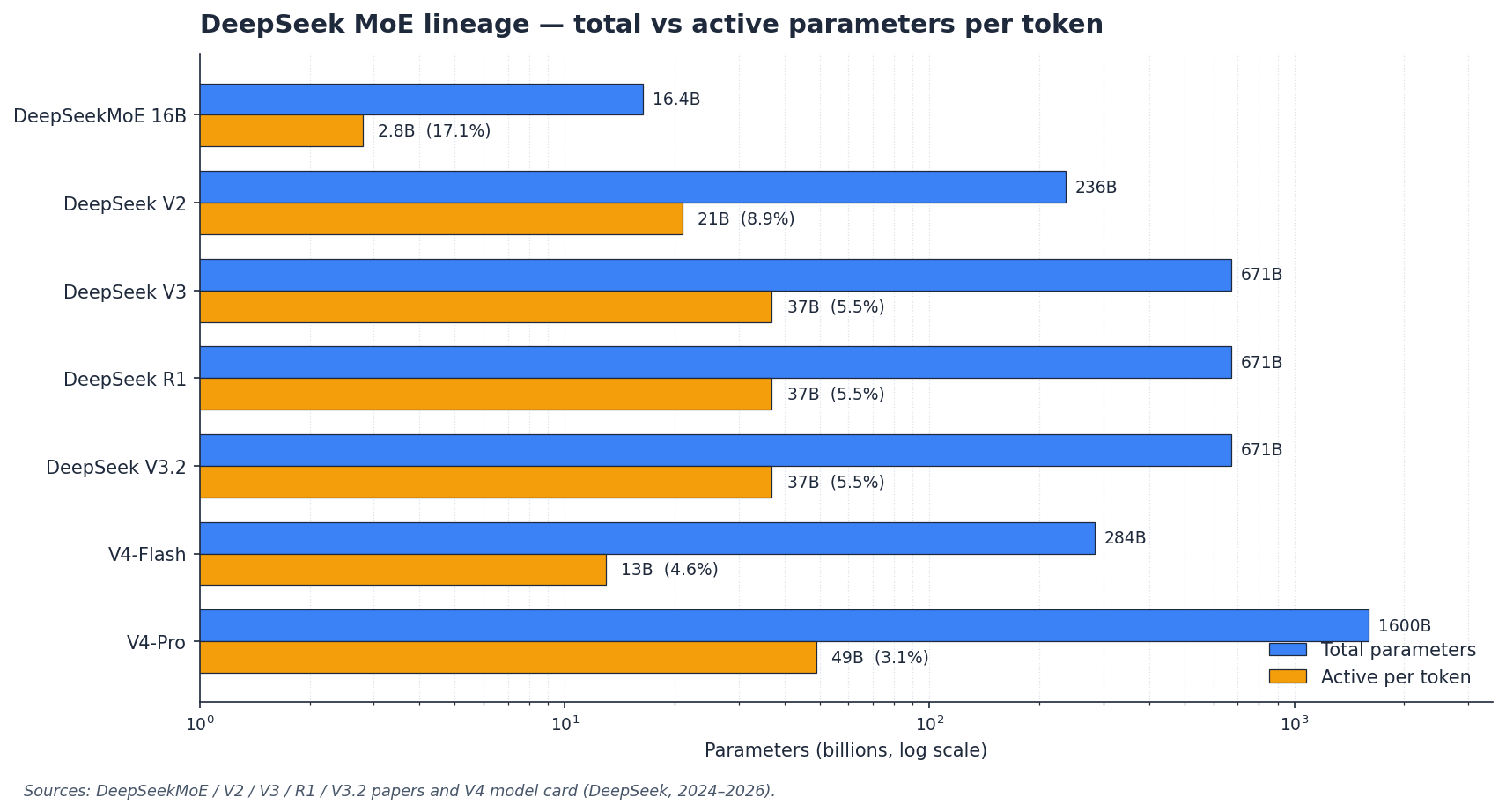

DeepSeek MoE has shipped in several generations of model. The table tracks total parameters, activated parameters and context length as each model’s own card or paper states them. Activated-parameter counts drive per-token compute at inference; total counts are what you have to store and load.

The later generations pair the MoE backbone with new attention designs. The April 2026 V4 preview card describes a hybrid attention mechanism combining Compressed Sparse Attention (CSA) and Heavily Compressed Attention (HCA) and reports that, at a 1M-token context, V4-Pro (Preview) needed only 27% of the single-token inference FLOPs and 10% of the KV cache of V3.2. The V4.1-Flash card (September 2026) describes CSA2 and an MoE layer with 1 shared expert and 384 routed experts, 6 of them activated per token. Both current API models offer a 1M-token context window.

Benchmarks

For the historical DeepSeekMoE paper, the headline result is efficiency parity with larger dense models: DeepSeekMoE 16B achieves comparable performance with DeepSeek 7B and LLaMA2 7B with only about 40% of the computations. A preliminary 145B variant in the same paper performed comparably with the dense DeepSeek 67B using only 28.5% (maybe even 18.2%) of the computations.

For the V4 generation, the numbers below come from DeepSeek’s April 2026 V4 preview model card. They are DeepSeek-reported and belong to the preview models, not to the V4-Pro-0813 or V4.1-Flash-1017 releases served today.

For more benchmark coverage, see DeepSeek benchmarks 2026.

Strengths of the DeepSeek MoE approach

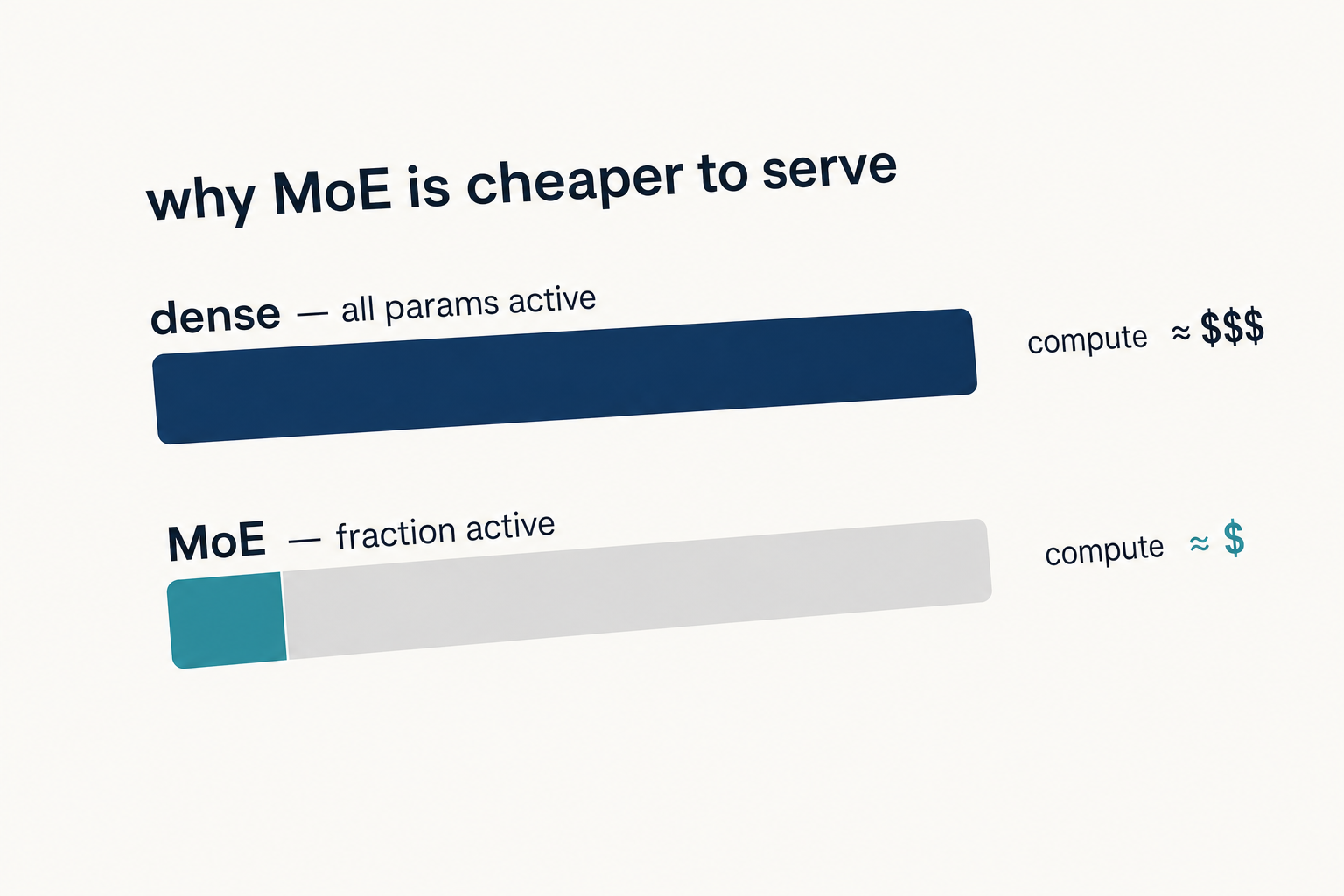

• Cheap inference per token. V3 activates 37B of its 671B parameters per token; the September V4.1-Flash build activates 8B (prefill) or 16B (decode) of a 552B backbone. Per-token compute tracks the active count, not the total.
• Specialisation. Fine-grained segmentation gives the router more, smaller experts to compose; ablations in the original paper show this helps.
• Reduced redundancy. Shared experts hold common knowledge so routed experts can specialise.
• Open weights. Every recent DeepSeek release (V4.1-Flash-1017, V4-Pro-0813, V4.1-Flash, V3.2, V3.1, R1) publishes both code and model weights under MIT. Some older releases (V3 base, Coder-V2, VL2, and DeepSeekMoE 16B itself) split code (MIT) from weights (separate DeepSeek Model License); check the specific model’s Hugging Face repo if licensing matters to you.
• Long context. Combined with DeepSeek’s sparse-attention designs, both current API models support a 1M-token context with up to 384K output tokens.

Weaknesses and trade-offs

MoE is not free. The architecture comes with real engineering costs that show up the moment you try to host it yourself.

• Memory floor. You still have to store every parameter in fast memory, even if only a fraction is active per token. On 26 October 2026 the current Hugging Face files total about 893 GB for DeepSeek-V4-Pro-0813 and about 510 GB for DeepSeek-V4.1-Flash-1017, before KV cache and activations.
• Routing complexity. Load-balancing experts across devices, avoiding routing collapse and managing expert-parallel communication add engineering work that dense models do not have.
• Self-reported benchmarks. The headline numbers for every generation are DeepSeek’s own; treat them as the lab’s figures, not independent results.

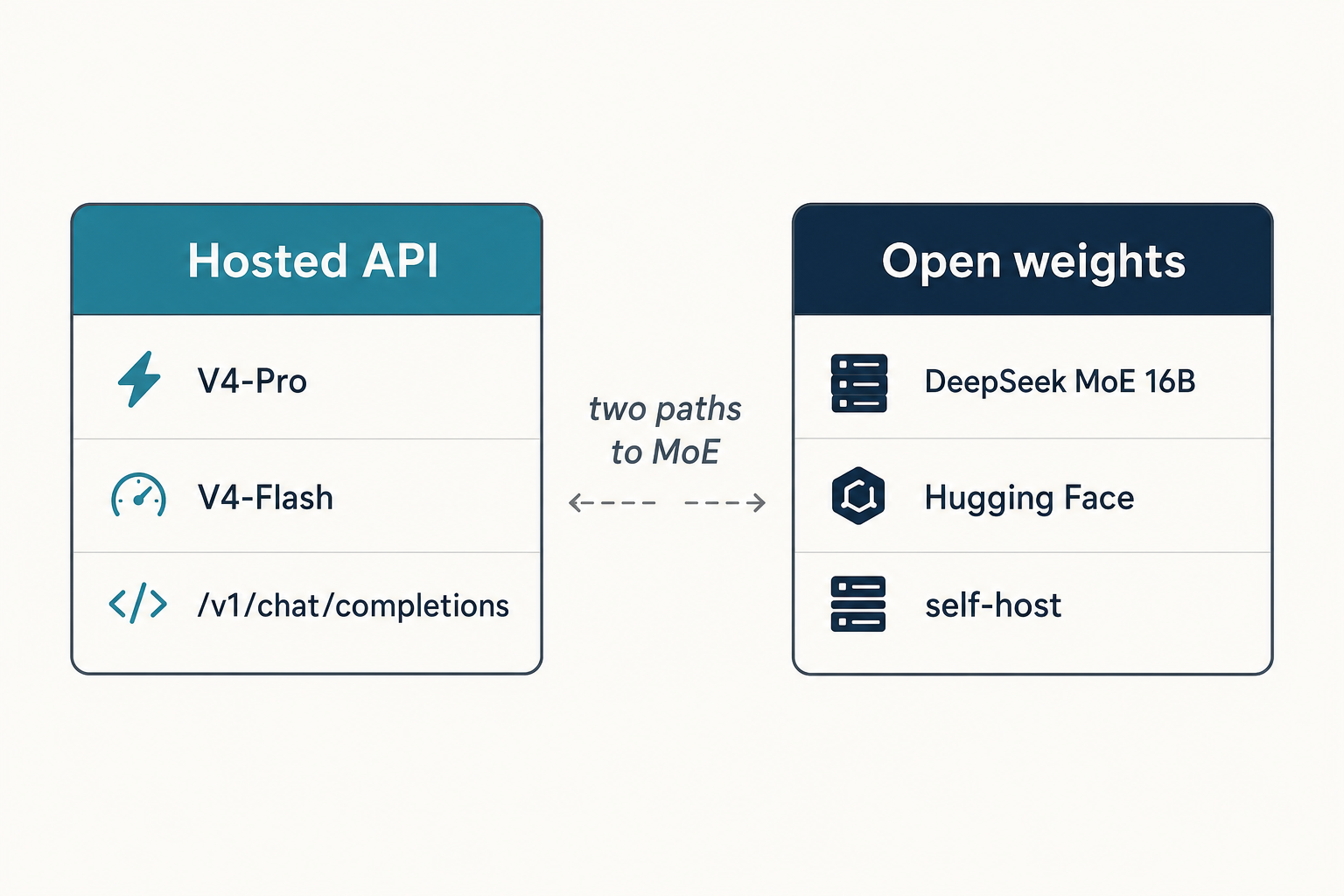

How to access DeepSeek MoE models

Three surfaces are available today:

1. Web chat and mobile app. According to DeepSeek’s 13 August 2026 announcement, V4 Pro is available on the app and web through “Expert Mode”, and the 17 October 2026 Change Log says the official web and app models were updated to DeepSeek-V4.1-Flash-1017.
2. Hugging Face. DeepSeek-V4-Pro-0813 and DeepSeek-V4.1-Flash-1017 are published under MIT. The original DeepSeekMoE 16B Base and Chat checkpoints (about 32.8 GB each) are also there; DeepSeek says they can be deployed on a single 40 GB GPU without quantisation, and their weights fall under the DeepSeek Model License, which permits commercial use.
3. API. Chat requests go to POST /chat/completions, the OpenAI-compatible endpoint at https://api.deepseek.com, with deepseek-flash or deepseek-v4-pro as the model. An Anthropic-compatible endpoint is available at https://api.deepseek.com/anthropic.

Minimal Python example

To study the architecture at a manageable scale, the DeepSeekMoE 16B chat model runs with Hugging Face Transformers. This is the chat example from DeepSeek’s DeepSeek-MoE README:

import torch
from transformers import AutoTokenizer, AutoModelForCausalLM, GenerationConfig

model_name = "deepseek-ai/deepseek-moe-16b-chat"
tokenizer = AutoTokenizer.from_pretrained(model_name)
model = AutoModelForCausalLM.from_pretrained(model_name, torch_dtype=torch.bfloat16, device_map="auto")
model.generation_config = GenerationConfig.from_pretrained(model_name)
model.generation_config.pad_token_id = model.generation_config.eos_token_id

messages = [
    {"role": "user", "content": "Who are you?"}
]
input_tensor = tokenizer.apply_chat_template(messages, add_generation_prompt=True, return_tensors="pt")
outputs = model.generate(input_tensor.to(model.device), max_new_tokens=100)

result = tokenizer.decode(outputs[0][input_tensor.shape[1]:], skip_special_tokens=True)
print(result)

For the hosted models, thinking mode is a request parameter on either current model, not a separate model ID, and it is on by default; responses then return reasoning_content alongside the final content. The API is stateless, so you must resend the conversation history with each request. For a step-by-step setup, see the DeepSeek API getting started guide.

Pricing snapshot

DeepSeekMoE 16B and the other open-weight checkpoints are free to download; the API prices the two current models separately. As of October 2026, per 1M tokens: deepseek-flash costs $0.30 for cache-miss input and $1.20 for output at peak, $0.15 and $0.60 off-peak (cache hits $0.006 / $0.003); deepseek-v4-pro costs $1.32 and $3.96 at peak, $0.66 and $1.98 off-peak (cache hits $0.044 / $0.022). Peak hours are 01:00–04:00 and 06:00–10:00 UTC, Monday to Friday, excluding Chinese public holidays. Verify on the DeepSeek API pricing page before committing budget, and run your own numbers with the DeepSeek pricing calculator.

Best use cases

• Coding agents and tool-calling pipelines. DeepSeek reports 87.9 on Terminal Bench 2.1 and 62.7 on DeepSWE for V4-Pro-0813 (13 August 2026 model card); see DeepSeek for coding and DeepSeek for developers.
• Long-document analysis. The 1M-token context window on both current API models suits whole-codebase or contract-set analysis.
• High-volume chat. deepseek-flash output at $1.20 per million tokens at peak ($0.60 off-peak) fits customer-support and content-generation workloads where per-call cost dominates.
• Research on MoE itself. The original DeepSeekMoE 16B is still a useful study artefact: small enough to run on one 40 GB GPU and designed to expose the architecture cleanly.

Comparable alternatives

Other open MoE models worth weighing against DeepSeek’s include Mixtral, Qwen’s MoE checkpoints and Kimi K2.6 (1T total / 32B activated, per Moonshot’s model card). Closed models from OpenAI, Anthropic and Google do not publish comparable architecture details. For head-to-head reading, see DeepSeek vs Mistral and DeepSeek vs Qwen, or browse the wider DeepSeek models hub for context on the rest of the lineup.

Verdict

DeepSeek MoE is the architectural through-line from V2 to today’s V4-Pro and V4.1-Flash. The two ideas, fine-grained expert segmentation and shared expert isolation, are simple on paper and well validated in the original ablations. DeepSeek has since scaled MoE to the 1.6T-parameter April 2026 V4-Pro preview and to 1M-token contexts. The catch is hardware: self-hosting the current models takes hundreds of gigabytes of fast memory, so most readers will meet DeepSeek MoE through the API or the chat app rather than at the weights level.
